The Inner Workings of Your On-Demand Hot Water Hero

Understanding the Basics: How Does a Tankless Water Heater Work?

At its core, a tankless water heater is a high-powered heat exchanger. While a traditional tank acts like a giant kettle keeping water warm all day, a tankless unit is more like a high-speed professional stovetop. It remains completely idle until it senses water moving through its pipes.

The primary goal of this technology is the elimination of standby heat loss. In a standard tank system, heat constantly escapes through the walls of the tank, forcing the heater to "cycle" on and off to maintain temperature. By removing the tank entirely, we remove that wasted energy.

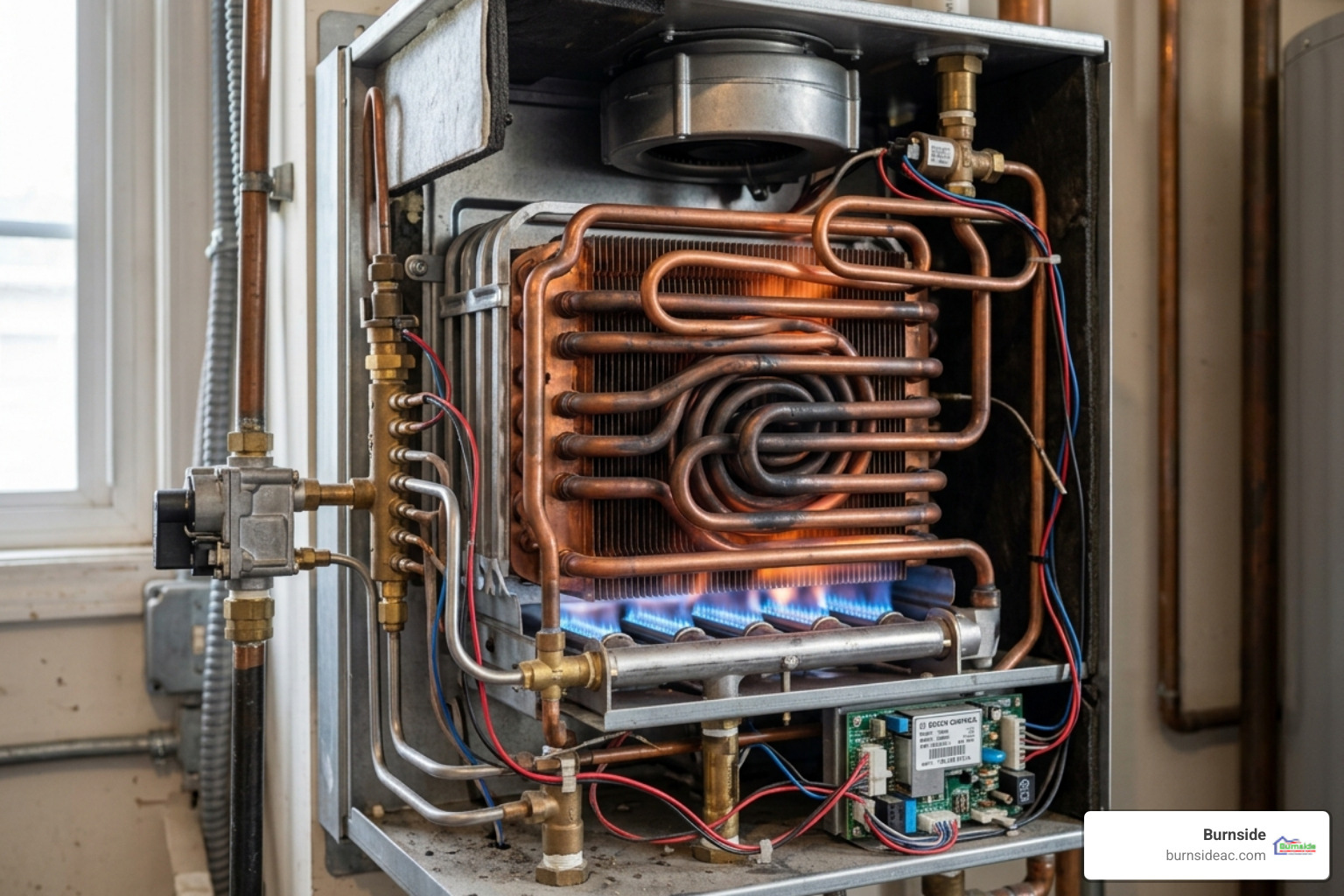

When you invest in Tankless Water Heaters, you are switching to a system that uses a compact, wall-mounted design. This "box" contains several sophisticated components:

• Flow Sensor: The "brain" that tells the unit when a faucet has been opened.
• Heat Exchanger: A series of coils (usually copper or stainless steel) where the actual heat transfer happens.
• Burner Assembly (Gas) or Heating Elements (Electric): The heat source that warms the exchanger.
• Control Board: The computer that manages gas flow, ignition, and temperature modulation.

This design allows for a continuous flow of hot water. As long as there is water entering the unit and a power source to heat it, the hot water will not run out.

The Step-by-Step Process of On-Demand Heating

The magic happens in a matter of seconds. When you crack open that shower handle in your Frisco home, a sequence of events triggers inside the unit to ensure you aren't met with a blast of ice water.

1. Detection: The process starts when the activation flow rate is met. Most modern units require at least 0.4 gallons per minute (GPM) to trigger the system. This prevents the unit from firing up for tiny drips or leaks.
2. Ignition: Once the flow is detected, the control board opens the gas valve and ignites the burner (or engages the electric coils).
3. Heat Transfer: Cold water snakes through the heat exchanger. In gas models, the burning fuel creates hot combustion gases that wrap around the water-filled pipes, instantly transferring thermal energy.
4. Monitoring: Temperature sensors at the intake and outlet monitor the water. If the incoming water is particularly cold—which can happen during North Texas winters—the unit adjusts the flame height to compensate.
5. Refinement: Many units use a mixing valve and a negative feedback loop. This means the computer constantly checks the outgoing temperature and adjusts the "firing rate" to ensure the water hitting your skin is exactly what you set on the digital thermostat.

This precision is why Tankless Water Heaters Frisco TX are becoming the standard for modern comfort.

How does a tankless water heater work to detect demand?

The flow sensor is a small turbine or magnetic switch located at the cold water inlet. When you open a tap, the water pressure forces this sensor to spin or move. This sends an electrical signal to the control board. The board then checks other safety parameters (like making sure the fan is working to vent exhaust) before allowing the heating process to begin. This instant activation is why you might hear a slight "whir" from the unit a second after you turn on the hot water.

How does a tankless water heater work with heat exchangers?

The heat exchanger is where the heavy lifting occurs. Most high-quality units, like those we install for Tankless Water Heaters Allen TX, use copper or stainless steel for these components. Copper is prized for its incredible thermal conductivity, while stainless steel offers superior resistance to the corrosive nature of some water types.

In advanced models, there may be a primary and secondary heat exchanger. The secondary exchanger captures "waste heat" from the exhaust gases to preheat the incoming cold water, significantly boosting the unit's efficiency.

Condensing vs. Non-Condensing and Fuel Types

When choosing a system, you'll likely encounter the terms "condensing" and "non-condensing." This refers to how the unit handles exhaust and efficiency.

Condensing models are the "top tier" of efficiency. They use a secondary heat exchanger to squeeze every bit of heat out of the exhaust. This cools the exhaust gases so much that they turn into a liquid (condensate), which is why these units can be vented with inexpensive PVC pipe rather than expensive metal venting. This high efficiency is a favorite for Tankless Water Heaters Plano TX where homeowners are looking for the lowest possible utility bills.

Regarding fuel, you have two main choices:

• Gas/Propane: Measured in BTU (British Thermal Units), usually ranging from 120,000 to 200,000 BTU. These are powerful and generally better for whole-home use in areas like Prosper.
• Electric: Measured in Watts (typically 15,000 to 36,000). These are great for point-of-use (like a single sink) or smaller homes, but they require significant space in your electrical panel.

Whether you go gas or electric, Tankless Water Heaters Prosper TX provide a compact footprint that frees up valuable closet or garage space.

Performance Factors and Maintenance for Texas Homes

While tankless heaters are "on-demand," they aren't magic. Their performance depends on two main factors: groundwater temperature and flow rate.

In Collin County, our groundwater temperature fluctuates. In the summer, the water coming into your home might be 70°F. To get it to a comfortable 120°F shower, the unit only needs to "lift" the temperature by 50 degrees. In the winter, that intake water might drop to 40°F, requiring an 80-degree lift. This means a unit that provides 5 GPM in the summer might only provide 3 GPM in the dead of winter.

Hard Water and ScaleOne of the most important things for homeowners in Celina and surrounding areas to know is the impact of hard water. Because tankless units use small, narrow passages in the heat exchanger to transfer heat quickly, they are susceptible to mineral buildup (scale).

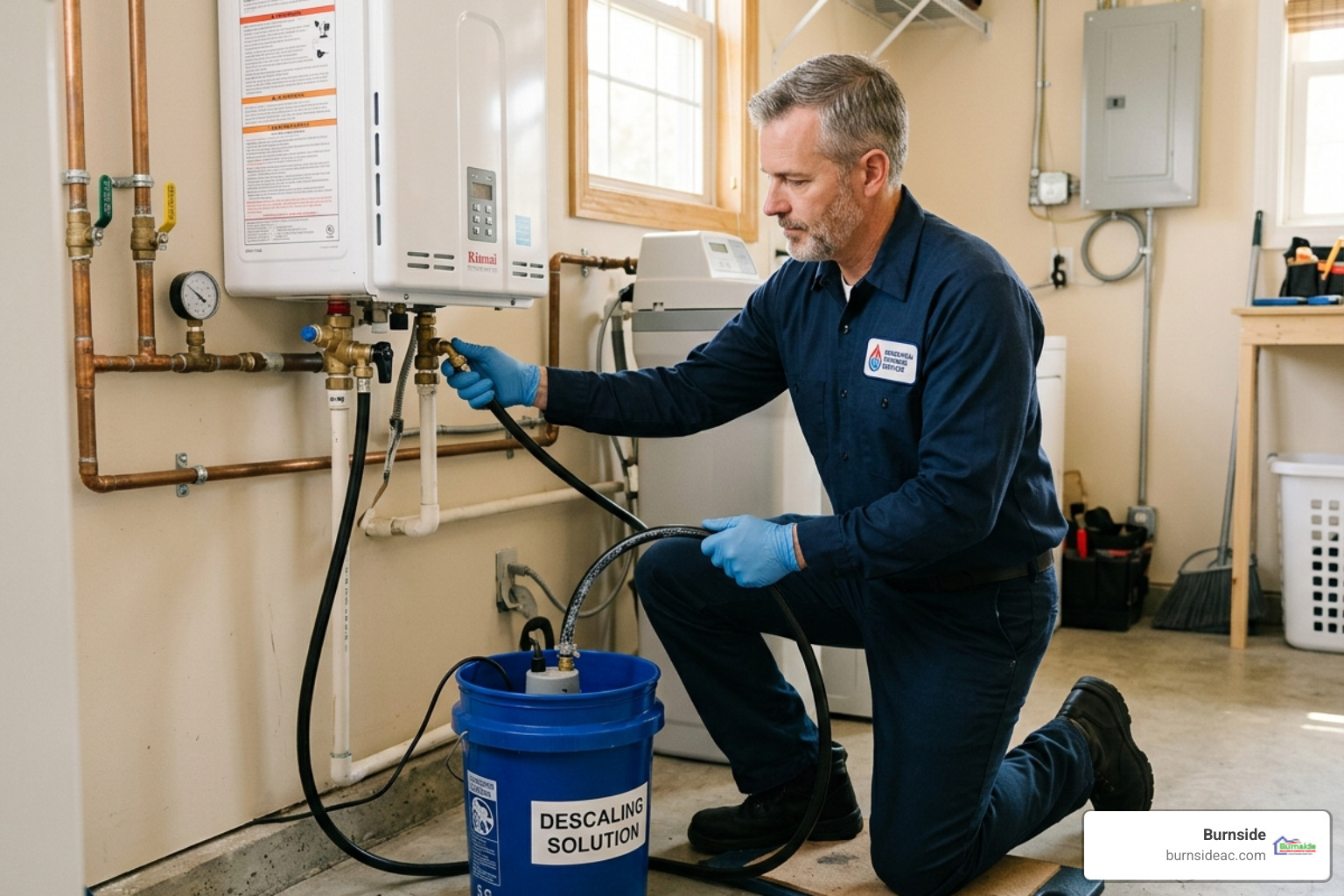

If you don't perform an annual flush, that scale acts as an insulator, making the unit work harder and eventually causing it to overheat or shut down. We always recommend Tankless Water Heaters Celina TX owners consider a water softener or at least stay diligent with yearly maintenance.

If your current system is struggling, you might find our Tankless Water Heater Replacement McKinney TX Guide helpful for understanding when it's time to upgrade.

Frequently Asked Questions about Tankless Systems

Why does my shower get cold if I run the dishwasher?

This is usually a "sizing" issue. Every tankless unit has a maximum GPM (gallons per minute) capacity. A typical shower uses about 2.5 GPM. If you are also running a dishwasher (1.5 GPM) and a washing machine (2.0 GPM) at the same time, you are demanding 6.0 GPM. If your unit is only rated for 5.0 GPM, it will either slow the flow or struggle to maintain the temperature, leading to a "cold sandwich" or a drop in heat. Proper sizing is key to avoiding system overload.

Do tankless water heaters really last 20 years?

Yes! While a traditional tank usually lasts 10 to 15 years before the tank itself corrodes and leaks, tankless units are designed with replaceable parts. Most have a life expectancy of more than 20 years. Because there is no large tank of water sitting and rusting, the "chassis" of the unit stays in great shape, and components like the heating element or sensors can be swapped out if they fail. This long-term reliability is a major selling point for Tankless Water Heaters Melissa TX.

Can I replace my old tank with a tankless model?

Absolutely, but it’s not always a "plug and play" swap. Retrofitting requires looking at a few things:

• Gas Lines: Tankless gas units need a lot of fuel quickly, so you may need a larger gas pipe.
• Venting: They require specific venting to handle the exhaust.
• Electrical: Even gas units need an outlet for the control board and igniter.
• Space: You'll gain a lot of floor space, which is why many Tankless Water Heaters Princeton TX are moved to the wall to make room for storage or workbenches.

Conclusion

At Burnside Air Conditioning & Heating & Plumbing, we’ve been the McKinney experts since 1958. As a family-owned business, we treat every home like our own, which is why we hold ourselves to the "Gold Star Standard" of service.

Understanding how does a tankless water heater work is the first step toward a more efficient, comfortable home. Whether you are in Frisco, Plano, or anywhere else in Collin County, we are here to provide accurate diagnostics and expert solutions. If you're ready to say goodbye to the "cold shower blues" and hello to endless hot water, we’re ready to help.

Explore our options for Tankless Water Heaters and see why your neighbors have trusted us for over six decades.
